The ZipStitch Chair

Ben Uyeda from HomeMade Modern shows how easy it is to make a modern chair using only zip ties and plywood. It’s surprisingly sturdy.

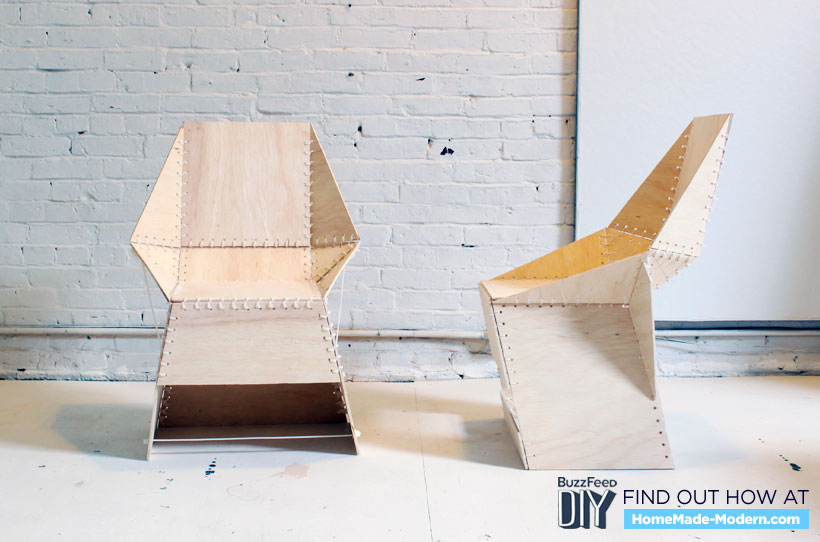

Chairs are generally more difficult to make than benches or stools, but here’s one that can be made by stitching (or what we’re calling ‘stiching’) plywood pieces with zip ties. I was able to make 2 chairs out of a single 4’ by 8’ sheet of plywood.

The chairs I built with ¼” thick plywood are strong, but over time the holes could wear through, so I’d recommend using ½” thick plywood. Feel free to do some experimenting with the design of the chair and share your results.

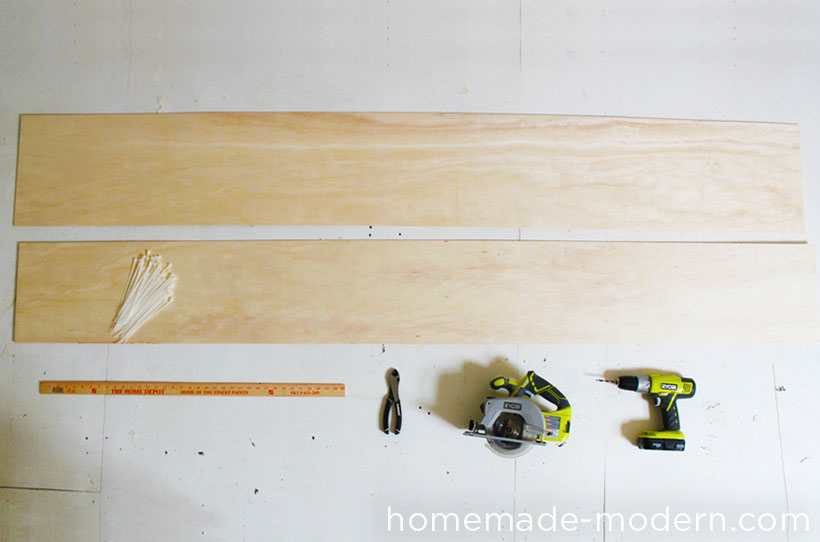

Supplies + Tools

4’x 8’ Sheet of 1/2” Thick Plywood
Available at Home Depot
There are a lot of different types of plywood. I used ¼” plywood which is strong enough to hold my weight but might not stand the test of time. 3/8” or ½” thick plywood would provide superior durability. I had the plywood cut into strips at Home Depot.

Zip Ties
Available at Home Depot
Zip ties – also called cable ties or tie wraps – come in a variety of different sizes. I tried both large 10” ties and thinner 4” ties. The thinner ties are much easier to work with.

RYOBI 18 Volt Cordless Drill
Available at Home Depot

RYOBI 18 Volt Circular Saw
Available at Home Depot

Husky 7” Diagnoal Pliers
Available at Home Depot

Husky 8” Long Nose Pliers
Available at Home Depot

1. Measure and mark the plywood strips

Measure and mark the plywood with a pencil.

2. Cut the pieces

I used my RYOBI 18 Volt Circular Saw with a plywood blade to make the cuts. The laser guide makes it really easy to follow the lines. If you don’t have a laser then clamp a guide to the plywood.

3. Sand the edges

Smooth the edges with 120-220 grit sandpaper.

4. Mark the holes

I measured a line 1/2” from the edges and marked a X every 1” inch down the line to indicate drill marks.

5. Drill the holes

I clamped 2 to 3 boards together to drill the holes on multiple pieces at the same time.

6. Loosely stitch the boards together

I zipped a series of loops into the drilled holes in the first piece. Then I strung zip ties through the holes in the second piece and the zip tie loops in the first piece. This creates a zip tie to zip tie connection/link. Keep the links loose for now.

7. Shape and tighten

Shaping and tightening the zip ties is an incremental process that requires a bit of patience. The good news is that you can always cut and redo zip ties if you make a mistake. Use long nose pliers to tighten the ties and diagonal pliers to cut the long ends.

8. Add supports

Method A: I used giant, 3 foot zip ties to make tension supports for the chair. Simply drilling two holes through the plywood and using a box cutter to carve out the area between the holes, I was able to create a rectangular hole large enough to strap part of the zip tie through. I then cut the head off of a second tie to cap the other end. I used the same method to make vertical supports that keep the back from reclining too far.

Method B: For the second chair, I cut some scrap plywood into supports and zip tied them to both the leg and back pieces of the chair.

9. Done!

Good luck making your own ZipStich Chair and please email or tweet photos to @benuyeda or ben@homemade-modern.com. For more detailed instructions on this an other DIY projects, check out homemade-modern.com.
